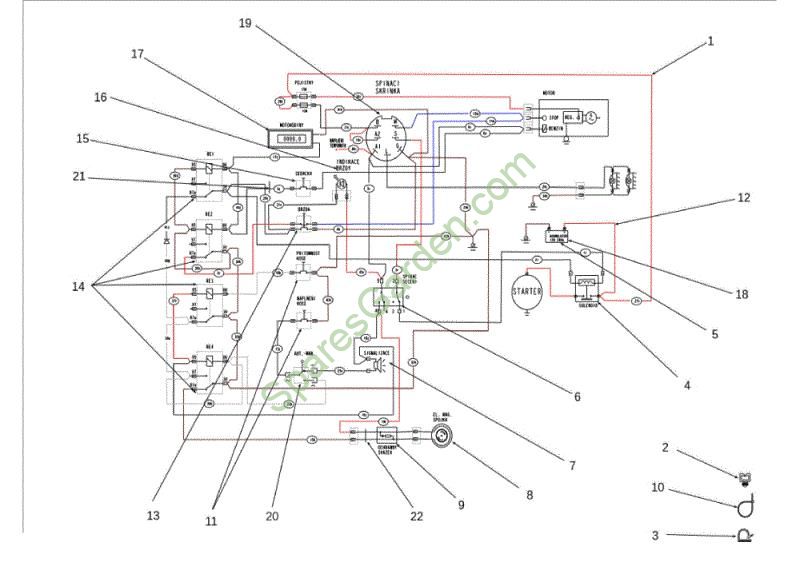

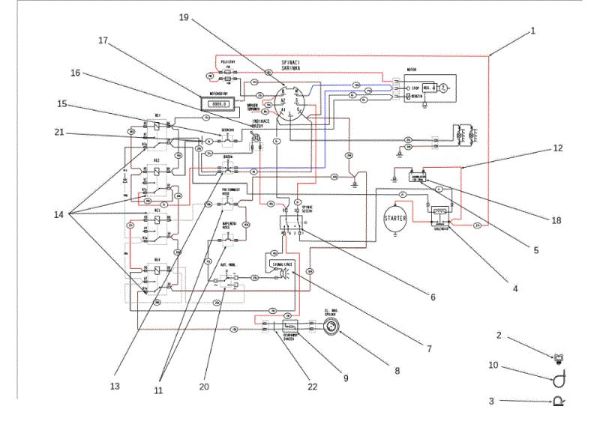

Electric diagram OM 106J/24H Cat.2010 Garden tractor

Electric diagram OM 106J/24H Cat.2010 Garden tractor

Garden tractors OM 106J/24H Cat.2010 Garden tractor Electric diagram Brand Oleo-Mac
Blagovna znamka: OLEOMAC
In case of spare parts order of OM 106J/24H Cat.2010 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of OM 106J/24H Cat.2010 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*

1 Wiring

Spare Part Wiring Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€659,72 z DDV

2 Fork

Spare Part Fork Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 4
€6,69 z DDV

3 Mount

Spare Part Mount Electric diagram Garden tractors Brand Oleo-Mac
€3,46 z DDV

4 Solenoid

Spare Part Solenoid Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€56,72 z DDV

5 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€11,37 z DDV

6 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€65,73 z DDV

7 Shoe

Spare Part Shoe Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25,08 z DDV

8 Clutch

Spare Part Clutch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€686,25 z DDV

9 Diode

Spare Part Diode Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25,24 z DDV

10 Strap

Spare Part Strap Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 8
€0,63 z DDV

11 Switch grassbag

Spare Part Switch grassbag Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 2
€55,76 z DDV

12 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€15,92 z DDV

13 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€67,59 z DDV

14 Starter relay

Spare Part Starter relay Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 4
€27,09 z DDV

15 Seat switch

Spare Part Seat switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€38,98 z DDV

16 Warning light

Spare Part Warning light Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€36,43 z DDV

17 Counter

Spare Part Counter Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€204,55 z DDV

18 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€15,92 z DDV

19 Switch box

Spare Part Switch box Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€71,57 z DDV

22 Bushing

Spare Part Bushing Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€4,83 z DDV
