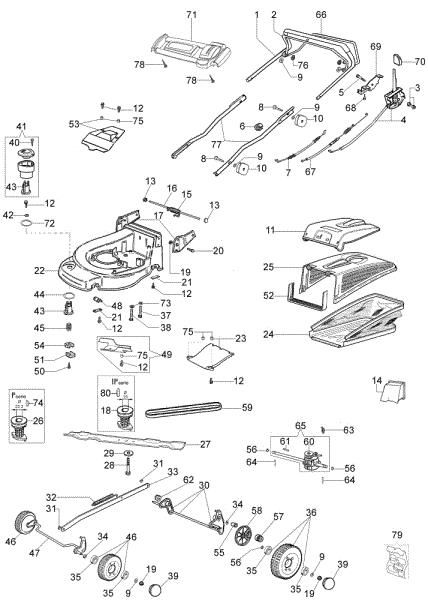

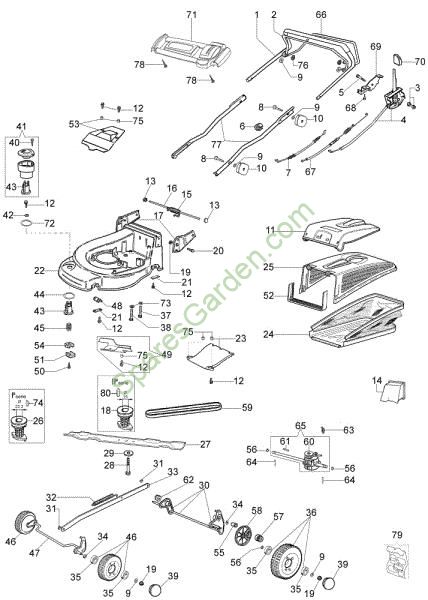

Illustrated part list MAX 44 TBX Plus-Cut Lawnmower

Illustrated part list MAX 44 TBX Plus-Cut Lawnmower

Mowers MAX 44 TBX Plus-Cut Lawnmower Illustrated part list Brand Oleo-Mac
Blagovna znamka: OLEOMAC
In case of spare parts order of MAX 44 TBX Plus-Cut Lawnmower brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of MAX 44 TBX Plus-Cut Lawnmower brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*

1 Handlebar

Spare Part Handlebar Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€65.44 z DDV

2 Brake lever

Spare Part Brake lever Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€34.39 z DDV

3 Nut

Spare Part Nut Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€0.88 z DDV

4 Complete throttle

Spare Part Complete throttle Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€33.23 z DDV

5 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€7.76 z DDV

6 Band

Spare Part Band Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€7.86 z DDV

7 Engine break cable

Spare Part Engine break cable Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€33.72 z DDV

8 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€3.71 z DDV

9 Washer

Spare Part Washer Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 4
€4.98 z DDV

10 Knob

Spare Part Knob Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 4
€16.47 z DDV

12 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac
€2.29 z DDV

13 Clamp

Spare Part Clamp Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€3.71 z DDV

14 Mulching cap

Spare Part Mulching cap Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€46.01 z DDV

15 Spring

Spare Part Spring Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€7.91 z DDV

16 Deflector axle

Spare Part Deflector axle Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€10.35 z DDV

17 Support set

Spare Part Support set Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€57.67 z DDV

18 Hub Ø22,2mm

Spare Part Hub Ø22-2mm Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€22.11 z DDV

19 Nut

Spare Part Nut Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 4
€1.95 z DDV

20 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 4
€5.12 z DDV

21 Plate

Spare Part Plate Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 4
€7.42 z DDV

22 Deck

Spare Part Deck Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€329.51 z DDV

23 Cover

Spare Part Cover Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€16.53 z DDV

24 Grassbag

Spare Part Grassbag Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€102.22 z DDV

26 Hub Ø22,2mm BT5-036-03/07

Spare Part Hub Ø22-2mm BT5-036-03/07 Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€37.77 z DDV

27 Mulching blade

Spare Part Mulching blade Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€26.40 z DDV

28 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€14.44 z DDV

29 Washer BT5-036-03/07

Spare Part Washer BT5-036-03/07 Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€9.71 z DDV

30 Rear axle

Spare Part Rear axle Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€45.35 z DDV

31 Ring

Spare Part Ring Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€1.81 z DDV

32 Spring

Spare Part Spring Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€25.62 z DDV

33 Rod

Spare Part Rod Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€23.12 z DDV

34 Washer

Spare Part Washer Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€3.61 z DDV

35 Bearing

Spare Part Bearing Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 8
€32.62 z DDV

36 Wheel

Spare Part Wheel Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€101.04 z DDV

37 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€1.90 z DDV

38 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€6.10 z DDV

39 Wheel cover

Spare Part Wheel cover Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 4
€8.78 z DDV

40 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€5.51 z DDV

41 Knob kit

Spare Part Knob kit Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€16.77 z DDV

42 Washer

Spare Part Washer Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€10.78 z DDV

43 Female thread

Spare Part Female thread Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€13.86 z DDV

44 Washer

Spare Part Washer Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€6.83 z DDV

45 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€13.32 z DDV

46 Wheel

Spare Part Wheel Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€61.11 z DDV

47 Front axle

Spare Part Front axle Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€45.35 z DDV

48 Bushing

Spare Part Bushing Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€6.34 z DDV

49 Fan

Spare Part Fan Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€25.24 z DDV

50 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€4.25 z DDV

51 Hub with sheet

Spare Part Hub with sheet Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€22.44 z DDV

53 Cover

Spare Part Cover Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€14.72 z DDV

54 Hub with sheet

Spare Part Hub with sheet Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€22.44 z DDV

55 Bushing

Spare Part Bushing Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€9.27 z DDV

56 Snap ring

Spare Part Snap ring Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 4
€2.24 z DDV

57 Left sprocket

Spare Part Left sprocket Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€26.20 z DDV

58 Wheel cover

Spare Part Wheel cover Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€20.70 z DDV

59 Belt

Spare Part Belt Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€23.56 z DDV

60 Pulley

Spare Part Pulley Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€19.10 z DDV

61 Plug

Spare Part Plug Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€4.93 z DDV

62 Right sprocket

Spare Part Right sprocket Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€26.20 z DDV

63 Spring

Spare Part Spring Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€15.82 z DDV

64 Roller

Spare Part Roller Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€3.61 z DDV

65 Gear case assy

Spare Part Gear case assy Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€221.45 z DDV

66 Traction lever

Spare Part Traction lever Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€26.18 z DDV

67 Traction cable

Spare Part Traction cable Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€55.49 z DDV

68 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€6.10 z DDV

69 Support

Spare Part Support Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€16.53 z DDV

70 Handle

Spare Part Handle Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€11.91 z DDV

71 Dashboard

Spare Part Dashboard Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€33.62 z DDV

72 Ring

Spare Part Ring Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€4.93 z DDV

73 Washer

Spare Part Washer Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 3
€0.54 z DDV

74 Key

Spare Part Key Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€3.71 z DDV

75 Spacer

Spare Part Spacer Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 3
€2.93 z DDV

76 Ring

Spare Part Ring Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€5.51 z DDV

77 Support set

Spare Part Support set Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€59.93 z DDV

78 Screw

Spare Part Screw Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 2
€0.54 z DDV

79 Labels kit

Spare Part Labels kit Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€16.12 z DDV

80 Key

Spare Part Key Illustrated part list Mowers Brand Oleo-Mac Required Quantity: 1
€13.03 z DDV
