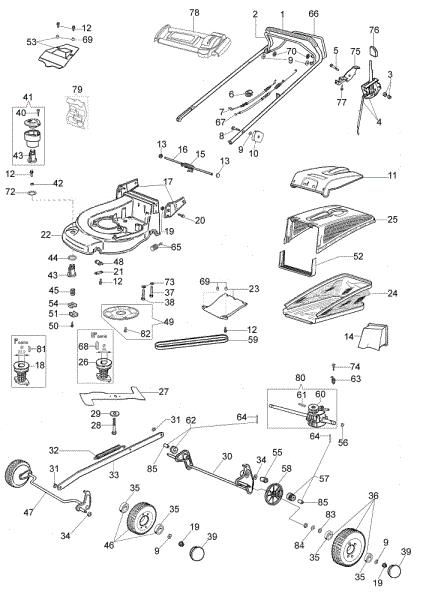

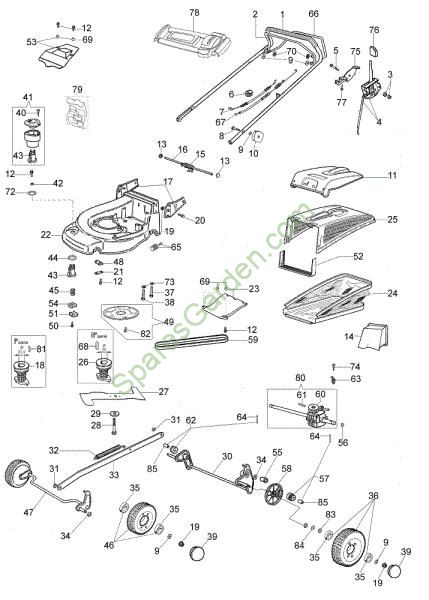

Illustrated parts list (From June 2007) MAX 48 TH Plus-Cut Lawnmower

Illustrated parts list (From June 2007) MAX 48 TH Plus-Cut Lawnmower

Mowers MAX 48 TH Plus-Cut Lawnmower Illustrated parts list (From June 2007) Brand Oleo-Mac
Blagovna znamka: OLEOMAC
In case of spare parts order of MAX 48 TH Plus-Cut Lawnmower brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of MAX 48 TH Plus-Cut Lawnmower brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*

1 Handlebar

Spare Part Handlebar Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€69,94 z DDV

2 Brake lever

Spare Part Brake lever Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€34,39 z DDV

3 Nut

Spare Part Nut Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€0,88 z DDV

4 Throttle

Spare Part Throttle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€41,07 z DDV

5 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€1,22 z DDV

6 Band

Spare Part Band Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€7,86 z DDV

7 Engine break cable

Spare Part Engine break cable Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€23,12 z DDV

8 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€3,71 z DDV

9 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€4,98 z DDV

10 Knob

Spare Part Knob Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€16,47 z DDV

11 Shutter

Spare Part Shutter Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€37,24 z DDV

12 Screw BT5-040-06/07

Spare Part Screw BT5-040-06/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac
€2,29 z DDV

13 Clamp

Spare Part Clamp Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€3,71 z DDV

14 Mulching cap

Spare Part Mulching cap Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€55,51 z DDV

15 Spring

Spare Part Spring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€7,91 z DDV

16 Deflector axle

Spare Part Deflector axle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€11,37 z DDV

17 Support set

Spare Part Support set Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€57,67 z DDV

18 Hub Ø22,2mm BT5-047-07/08

Spare Part Hub Ø22-2mm BT5-047-07/08 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€37,77 z DDV

19 Nut

Spare Part Nut Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€1,95 z DDV

20 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€5,12 z DDV

21 Plate

Spare Part Plate Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€7,42 z DDV

22 Deck BT5-040-06/07

Spare Part Deck BT5-040-06/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€521,14 z DDV

23 Cover

Spare Part Cover Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€23,47 z DDV

24 Grassbag

Spare Part Grassbag Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€125,09 z DDV

25 Frame

Spare Part Frame Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€69,57 z DDV

26 Hub Ø25mm BT5-047-07/08

Spare Part Hub Ø25mm BT5-047-07/08 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€40,41 z DDV

27 Mulching blade 48 SN 6240387611 BT5-064-03/11

Spare Part Mulching blade 48 SN 6240387611 BT5-064-03/11 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€46,97 z DDV

28 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€14,44 z DDV

29 Washer BT5-047-07/08

Spare Part Washer BT5-047-07/08 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€9,71 z DDV

30 Compl. rear axle

Spare Part Compl. rear axle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€129,66 z DDV

31 Retainer washer

Spare Part Retainer washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€10,93 z DDV

32 Spring

Spare Part Spring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€25,62 z DDV

33 Rod

Spare Part Rod Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€24,25 z DDV

34 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€3,61 z DDV

35 Bearing

Spare Part Bearing Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 8
€32,62 z DDV

36 Wheel

Spare Part Wheel Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€101,04 z DDV

37 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€1,90 z DDV

38 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€6,10 z DDV

39 Wheel cover

Spare Part Wheel cover Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€8,78 z DDV

40 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€5,51 z DDV

41 Knob kit

Spare Part Knob kit Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€16,77 z DDV

42 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€10,78 z DDV

43 Female thread

Spare Part Female thread Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€13,86 z DDV

44 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€6,83 z DDV

45 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€13,32 z DDV

46 Wheel

Spare Part Wheel Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€61,11 z DDV

47 Front axle

Spare Part Front axle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€118,94 z DDV

48 Bushing

Spare Part Bushing Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€6,34 z DDV

49 Guard kit BT5-040-06/07

Spare Part Guard kit BT5-040-06/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€18,51 z DDV

50 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€4,25 z DDV

51 Hub with sheet

Spare Part Hub with sheet Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€22,44 z DDV

52 Support

Spare Part Support Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€12,78 z DDV

53 Cover

Spare Part Cover Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€30,64 z DDV

54 Hub with sheet

Spare Part Hub with sheet Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€22,44 z DDV

55 Bushing

Spare Part Bushing Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€9,27 z DDV

56 Snap ring

Spare Part Snap ring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€2,24 z DDV

57 Left sprocket SN 6245207451 BT5-080-05/15

Spare Part Left sprocket SN 6245207451 BT5-080-05/15 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€26,20 z DDV

58 Wheel cover

Spare Part Wheel cover Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€20,70 z DDV

59 Belt Z 33 10x840 LI (PI BELT) BT5-037-04/07

Spare Part Belt Z 33 10x840 LI (PI BELT) BT5-037-04/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€24,66 z DDV

60 Pulley BT5-037-04/07,

Spare Part Pulley BT5-037-04/07- Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€19,10 z DDV

63 Spring BT5-037-04/07,

Spare Part Spring BT5-037-04/07- Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€13,62 z DDV

64 Roller SN 6245207450 BT5-080-05/15

Spare Part Roller SN 6245207450 BT5-080-05/15 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€3,61 z DDV

65 AV-mount BT5-037-04/07,

Spare Part AV-mount BT5-037-04/07- Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€30,27 z DDV

67 Traction cable BT5-037-04/07,

Spare Part Traction cable BT5-037-04/07- Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€27,85 z DDV

69 Spacer BT5-040-06/07

Spare Part Spacer BT5-040-06/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 8
€2,93 z DDV

70 Ring

Spare Part Ring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€5,51 z DDV

72 Ring

Spare Part Ring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€4,93 z DDV

73 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 3
€0,54 z DDV

74 Screw BT5-037-04/07,

Spare Part Screw BT5-037-04/07- Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€6,10 z DDV

76 Handle

Spare Part Handle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€11,91 z DDV

77 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€6,10 z DDV

78 Dashboard

Spare Part Dashboard Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€33,62 z DDV

79 Labels kit

Spare Part Labels kit Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€16,12 z DDV

80 Transmission BT5-053-06/09

Spare Part Transmission BT5-053-06/09 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€241,86 z DDV

81 Key BT5-047-07/08

Spare Part Key BT5-047-07/08 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€3,71 z DDV

82 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 3
€2,29 z DDV

83 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€9,96 z DDV

84 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€3,17 z DDV

85 Bushing SN 6245207451 BT5-080-05/15

Spare Part Bushing SN 6245207451 BT5-080-05/15 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€4,00 z DDV
